DTF Transfer basics

What Are DTF Transfers and How Do They Work?

Direct-to-film transfers, commonly called DTF transfers, are full-color heat-applied graphics used to decorate apparel and many other compatible products. The artwork is printed onto specially coated transfer film, backed with white ink, coated with powdered adhesive, and cured before application.

To apply a DTF transfer, the printed film is positioned on the item and pressed using the proper combination of heat, pressure, and time. The heat activates the adhesive, allowing the printed design to bond to the surface. The carrier film is then removed, leaving the finished design behind.

DTF printing can reproduce detailed illustrations, photographs, gradients, fine lettering, and artwork containing many colors without creating a separate screen for each color. The white underbase also allows the same transfer to remain bright and visible on both light and dark materials.

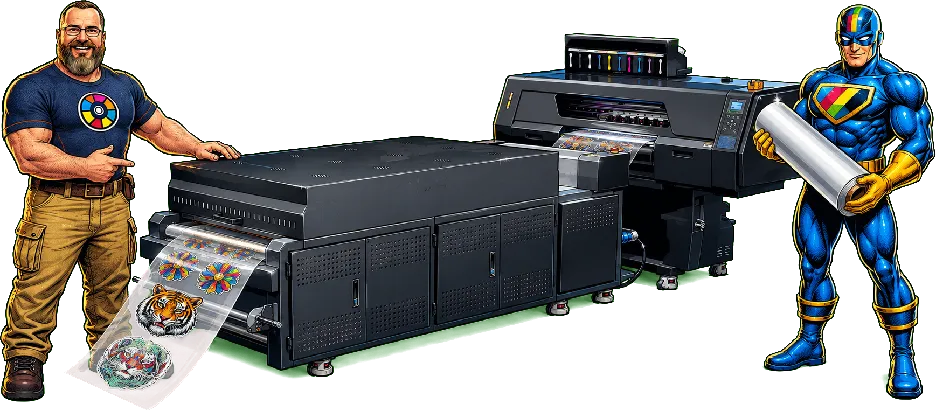

Smilin’ Mike beside a DTF printer as printed transfers exit the dryer, with Captain Gamut holding a roll of transfer film.

DTF transfers can be applied to nearly all common fabrics and many porous, flexible, or otherwise receptive materials, including:

  • Cotton
  • Polyester
  • Cotton-polyester blends
  • Performance fabrics
  • Other Synthetics/blends
  • Canvas
  • Denim
  • Neoprene
  • Leather
  • Leatherette
  • Wood
  • Many other heat-tolerant porous materials

Standard apparel DTF transfers are not intended for smooth, nonporous hard surfaces such as metal, ceramic, or glass. Those materials generally require a different printing or transfer process.

Because coatings, surface textures, and heat tolerances vary, unfamiliar materials should be tested before beginning a full production run.

Businesses and decorators often choose DTF transfers because they make it practical to produce short runs, full-color artwork, multiple design sizes, personalized products, and repeat orders without the setup requirements of traditional screen printing.

The final appearance and durability of a DTF transfer depend on the quality of the submitted artwork, the size at which it is printed, the surface being decorated, and correct heat-press application. USA Transfer Co also uses an expanded-gamut DTF printing process to reproduce a wider range of vivid colors than standard CMYK-only printing.

ADVANCED DTF COLOR

What Is Expanded-Gamut DTF Printing?

Expanded-gamut DTF printing uses additional color inks beyond standard CMYK to reproduce a wider range of vivid, saturated, and difficult-to-reach colors. A conventional DTF printer generally creates color using cyan, magenta, yellow, and black inks over a white underbase. USA Transfer Co expands that system with dedicated red, green, blue, and orange inks.

These additional ink channels give the color-management system more options when reproducing artwork. Colors that may appear flatter, duller, or more limited with CMYK alone can often be printed with greater vibrance, smoother transitions, and better separation between similar shades.

Expanded-gamut DTF printing can be especially beneficial for:

  • Bright company logos and brand colors
  • Colorful illustrations and character artwork
  • Photographs and detailed gradients
  • Team, school, and event graphics
  • Intense reds, oranges, greens, blues, and related shades
  • Artwork containing a broad range of saturated colors
Captain Gamut presenting a holographic expanded-gamut color display with a broader range of printable colors than standard CMYK.

The purpose of expanded gamut is not simply to make every design brighter. The goal is to reproduce more of the useful color information contained in the original artwork and provide a stronger printed result when a design contains colors that fall outside the range of a typical CMYK-only DTF process.

Expanded-gamut printing still operates within the physical limits of ink on a printed surface. The quality and color information contained in the original artwork remain important. For the strongest results, preserve vivid artwork in RGB and review our artwork-preparation and color-expectation guidance before ordering.

Prepare Artwork for DTF Printing Understand DTF Color Expectations
Smilin’ Mike, USA Transfer Co’s friendly print expert, standing with his arms crossed

Choose the right workflow

Ways to Order DTF Transfers

USA Transfer Co offers two flexible ways to order custom DTF transfers: the Gang Sheet Builder and DTF Per Piece. Both options allow you to upload multiple designs, order different sizes and quantities of each design, and use the same professional-level artwork and ordering tools. Both are produced using the same expanded-gamut DTF printing process and quality standards.

The main difference is how your order is priced and arranged. The Gang Sheet Builder prices the order according to the total square footage of the completed gang sheets. You can allow the AI to arrange your designs efficiently, or you can adjust and fine-tune the layout yourself. Because the final cost depends partly on how efficiently the available sheet area is used, the effective cost of each transfer may vary somewhat from one order to another.

DTF Per Piece prices each transfer according to the selected image size. You can still upload multiple designs and order several sizes and quantities, but each transfer size has a clear and consistent price that remains the same every time. This makes it easier to quote customer jobs, calculate margins, and repeat previous orders with predictable transfer costs.

Choose the Gang Sheet Builder when you want to maximize the available sheet area and prefer control over how your artwork is arranged.

Choose DTF Per Piece when consistent per-transfer pricing and easier job costing are the higher priority. Both methods provide the same professional tools and the same finished print quality.

Explore the Gang Sheet Builder Explore DTF Per Piece

AI-POWERED LAYOUT WITH HANDS-ON CONTROL

Use the AI Gang Sheet Builder by Kixxl

Our Gang Sheet Builder is powered by Kixxl, a professional web-to-print software developed specifically for print production. Upload multiple designs, select the size and quantity of each, and let Kixxl’s AI automatically arrange them across your gang sheet. You can use the suggested layout as created or adjust the placement yourself before ordering.

You can also choose a cut-optimized layout that favors straighter, easier trimming where practical. The complete sheet remains visible and editable, giving you control over spacing, rotation, duplication, and final placement.

Gang Sheet Builder pricing is based on the total square footage of the completed order. Filling the available area efficiently helps you get more transfers from the space you purchase, although the effective cost of each individual transfer can vary depending on the final layout.

Choose the Kixxl Gang Sheet Builder when you want AI-assisted nesting, control over the complete sheet, and the ability to maximize the printable area. It includes the same professional image-preparation tools available through DTF Per Piece.

Let's Go Build A Gang Sheet

Best for predictable production costs

Order DTF Per Piece

DTF Per Piece gives you consistent, repeatable pricing based on transfer dimensions and quantity. The total is designed to stay close to an equivalent Gang Sheet Builder order while making the cost of each transfer easier to predict.

It is especially useful when you need to price a job before bidding it to your customer, establish a repeatable production cost, or build transfer cost directly into your own retail pricing.

Order DTF Per Piece

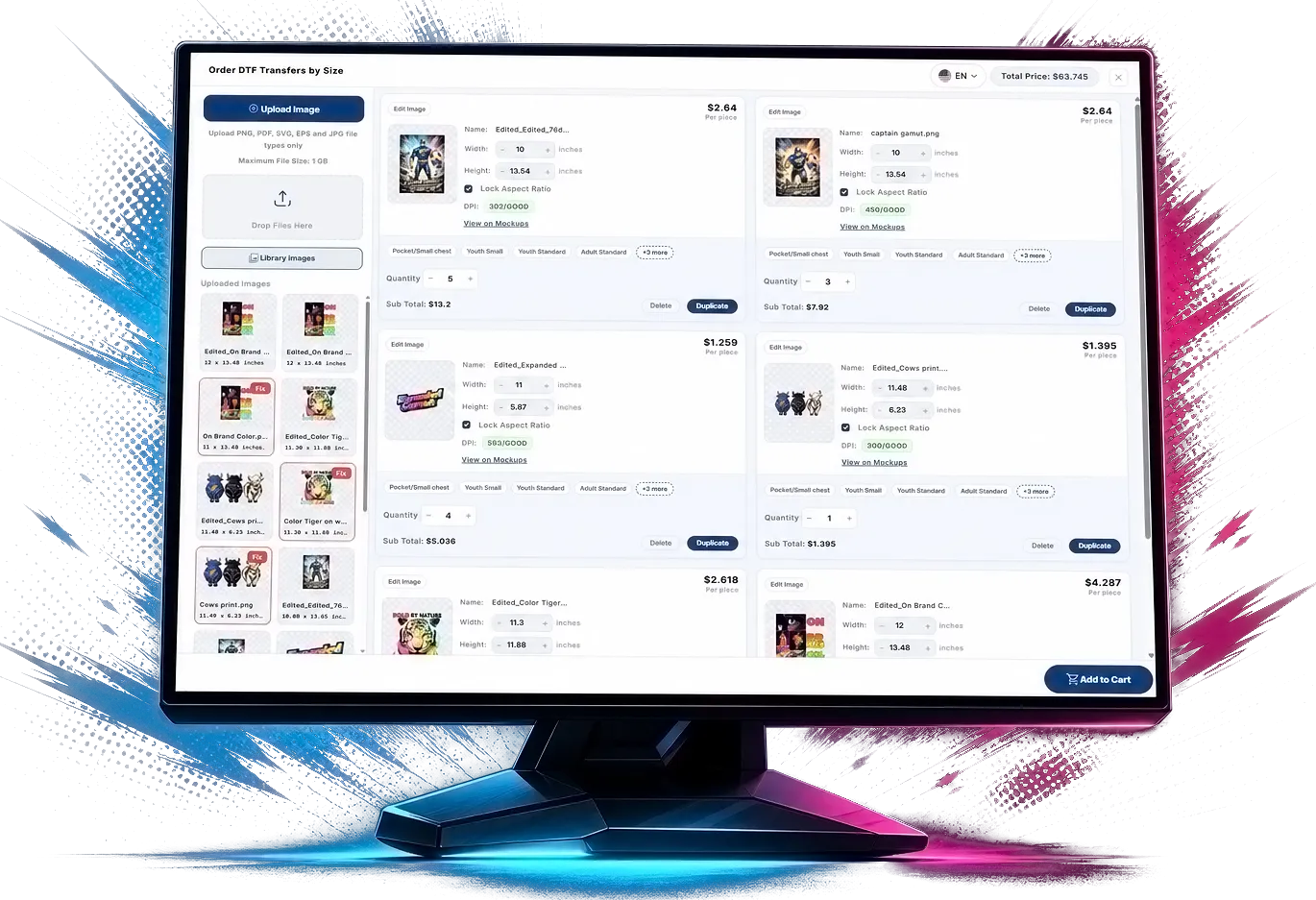

DTF Per Piece ordering interface displayed on a comic-style computer monitor.

Prepare for the best result

Artwork Preparation

Start with the highest-quality artwork available and prepare it at the largest final print size you expect to order. A file that looks sharp as a small preview can become soft or pixelated when enlarged.

DTF artwork checklist

  • Use a transparent background. Anything visible in the file—including an unwanted white rectangle—WILL print.
  • Work at final size. For raster artwork, aim for 300 pixels per inch at the intended print dimensions. Avoid enlarging a small image beyond the detail it contains.
  • Preserve RGB color. Keep vivid artwork in RGB so our expanded-gamut workflow has the strongest color information available.
  • Check fine details. Very thin lines, tiny text, soft edges, and low-opacity effects can become less distinct when printed at small sizes.
  • Review white artwork carefully. View the file against a dark background or transparency grid so white elements are not mistaken for empty space. The Edit Image window and Gang Sheet Builder canvas can both display a background color to help you see white artwork clearly. This display color is only a viewing aid and will not print.
  • Upload finished production art. USA Transfer Co prints the completed file you submit as-is; build sizing, color, spelling, and layout decisions into the artwork before ordering.
  • Review any partial-transparency notices. The Gang Sheet Builder may flag semi-transparent pixels that could create unexpected edges or shading in print. Use the built-in Transparency Cleanup and Halftone tools to preview the result and make any adjustments you want before submitting your sheet.

Ordering one design in several sizes? Upload the largest high-quality version. Smaller copies can be produced without losing image detail, while enlarging a smaller file can expose softness, pixelation, or compression artifacts.

Use the builder preview to confirm the final dimensions, quantity, orientation, and visible background before adding the job to your cart.

Screen color versus printed color

Color Expectations

A monitor creates color with emitted light, while a printed DTF transfer is viewed by reflected light. Screen brightness, calibration, viewing angle, room lighting, garment color, and substrate texture can all influence how a color appears. A color can therefore look different in print even when the artwork file and printing process are accurate.

USA Transfer Co uses an in-house-profiled, nine-color expanded-gamut DTF process with cyan, magenta, yellow, black, red, green, blue, orange, and white inks. This gives us a wider useful color range than a standard CMYK-only workflow, but no physical printing process can reproduce every color shown by a bright display. Our ink set is not fluorescent, so fluorescent and extremely luminous screen colors will print as the closest achievable process color.

For color-critical work

  • Keep the original artwork in RGB and avoid unnecessary color conversions.
  • Evaluate color under the lighting in which the finished product will normally be seen.
  • Remember that different garment colors and materials can influence perceived color after pressing.
  • For corporate colors, team colors, repeat orders, or larger jobs, use a printed reference before committing to production.

Our Custom DTF Color Match Chart is printed with the same printer, expanded-gamut inks, and film used for future USA Transfer Co Expanded Gamut DTF orders. Build a chart around the color that matters to your job, review the labeled swatches in print, and apply your preferred swatch code to the final artwork before you upload.

Build a Custom DTF Color Match Chart

Current pressing guidance

Application Instructions

Use a professional heat press that can deliver firm, even pressure across the entire transfer. High pressure is the key to maximum bond strength and longevity.

Recommended starting settings

  • Press time: 4–8 seconds.
  • Pressure: High, with even contact across the full design.
  • Cotton: 260–300°F.
  • Polyester, synthetics, and blends: 260–270°F.
  • Peel: Any peel. Remove the carrier instantly, hot, warm, cool, or cold according to your preference.
  • Second press: Recommended with a cover sheet, but not required.

Place the transfer on a flat, dry pressing area and make sure seams, collars, pockets, buttons, or zippers do not prevent even pressure. Press using the appropriate temperature range, high pressure, and a 4–8 second dwell. Peel at the point you prefer. If desired, cover the design and complete a second press (recommended).

Do not use a household iron or a handheld craft press such as a Cricut EasyPress. These tools do not reliably provide the high, even pressure needed across the complete design.

Heat presses and garments vary. Test unfamiliar or heat-sensitive materials before a production run, and begin at the lower end of the recommended temperature range for polyester, synthetics, and blends.

Solve common application problems

Troubleshooting

Edges lift or the transfer does not fully bond

Check pressure first. Use high, even pressure and confirm that the complete design is making full, flat contact with the platen. Cover the design and press again for 4–8 seconds. Because these transfers are any-peel, changing when you peel is not required to correct the bond.

A test press still does not fully bond

Stop before pressing the full order. Record the garment material, temperature, time, pressure, press model, and what you observed so the setup can be evaluated systematically.

Adhesion is uneven across the design

Uneven adhesion usually points to uneven platen contact. Seams, collars, pockets, buttons, zippers, and other raised areas can prevent pressure from reaching the entire transfer. Reposition the garment to keep them outside the pressing area whenever possible. When that is not possible, place a heat-press pillow inside the garment to raise and support the application area so pressure remains even across the transfer.

* Some fabrics are treated with stain-resistant, water-resistant, or similar coatings that can resist transfer bonding—for example, coated totes or aprons. A cold peel may sometimes help the transfer bond, but durability can still be limited. Test the specific item before pressing the full order.

The garment scorches, shines, or shows a press mark

Too much heat is reaching the garment and is likely exceeding our recommended settings. Move toward the lower end of the recommended temperature range, shorten the dwell within the 4–8 second window, and test in an inconspicuous area. Polyester, synthetics, blends, and decorated fabrics can be especially heat-sensitive. If the problem continues even at a recommended setting, verify the platen temperature with a contact thermometer—the press’s displayed temperature may need calibration.

The printed design looks soft or pixelated

Inspect the source artwork at the final print dimensions. Printing cannot restore detail that is missing from an undersized, compressed, or low-resolution file.

The design has a white outline, soft-edge halo, or muddy transparency effects

These symptoms usually come from partially transparent pixels. Common causes include anti-aliased edges, low-quality artwork, improperly enlarged graphics, glow or shadow effects, and incomplete distressing or knockout areas.

For unwanted white outlines or soft-edge halos, use the Gang Sheet Builder’s Transparency Cleanup tool to remove the partially transparent edge pixels. For intentional shadows, glows, fades, or other transparency effects, use the Halftone tool to convert the transparency into printable dots instead of removing the effect. Review the preview carefully before submitting the sheet.

The printed color differs from the screen

Compare the result under neutral lighting and review the color-expectation guidance above. For a color-critical order, build a Custom DTF Color Match Chart and select the preferred labeled code from the physical print.

Practical storage and washing guidance

Transfer Storage and Garment Care

Keep unpressed transfers clean and protected from dust, oils, abrasion, and direct heat. Store them flat or loosely rolled so the printed surface and adhesive are not damaged.

Humidity does not inherently ruin a cured transfer. If a transfer becomes damp or wet, allow the adhesive to dry completely before pressing.

Finished garment care

  • Allow the transfer and adhesive to cool fully to room temperature before the first wash; an extended waiting period is not required.
  • Turn the garment inside out when practical.
  • Wash cool with a mild detergent.
  • Avoid bleach and fabric softener.
  • Tumble dry low or hang dry.
  • Do not place a hot iron directly on the printed design.

Garment construction, fabric quality, wash chemistry, dryer temperature, and correct initial application all influence long-term durability. Following the pressing guidance above creates the strongest starting bond.
